Android: ConnectionService

A self-managed ConnectionService resolves the situation of multiple calls from various applications that also use the ConnectionService API, such as switching between calls on hold or answering an incoming call when you're already on a call. It also allows answering or declining calls on wearable devices.

Manifest declarations and permissions

Copy URL

To integrate a self-managed ConnectionService, declare the MANAGE_OWN_CALLS permission in the AndroidManifest.xml file.

<uses-permission android:name="android.permission.MANAGE_OWN_CALLS" />

To connect Telecom to ConnectionService, declare the service itself and the BIND_TELECOM_CONNECTION_SERVICE permission in the AndroidManifest.xml file.

<service
    android:name=".services.CallConnectionService"
    android:permission="android.permission.BIND_TELECOM_CONNECTION_SERVICE">
    <intent-filter>
        <action android:name="android.telecom.ConnectionService" />
    </intent-filter>
</service>

TelecomManager and PhoneAccount

Copy URL

TelecomManager uses a registered PhoneAccount to place a phone/VoIP call. To build a PhoneAccount, the app should provide a valid PhoneAccountHandle which refers to the connection service implementation that Telecom uses to interact with the app.

A PhoneAccountHandle consists of a component name of the associated connection service and a string identifier that is unique among PhoneAccountHandles with the same component name. See PhoneAccountHandler on the Android Developers site.

Build PhoneAccount

Build PhoneAccount

For a self-managed ConnectionService, set PhoneAccount.CAPABILITY_SELF_MANAGED to indicate that this PhoneAccount is responsible for managing its own Connection.

Create and manage a call connection

Copy URL

Android Telecom Connection

A Connection represents a phone call or connection to a remote endpoint that carries voice and/or video traffic.

This definition requires a new Android Telecom Connection to be created for each outgoing (before ICall.start()) and incoming (before ICall.answer()) Voximplant call. This way the Voximplant ICall interface manages a VoIP call and Telecom Connection registers this call in the telecom subsystem.

Every self-managed Connection should be specified with the following parameters:

Self-managed Connection parameters

Self-managed Connection parameters

You can also use additional features such as putting a call on hold or muting with connectionCapabilities. Find the full list of features on the Android Developers site.

Please note, that each new Connection should be passed to the Voximplant SDK via IAudioDeviceManager.setTelecomConnection() to manage audio devices.

Make an outgoing call

To create an outgoing call, check that a PhoneAccount is registered and then use the TelecomManager.placeCall() method.

A self-managed ConnectionService should contain EXTRA_PHONE_ACCOUNT_HANDLE in the Bundle extra to specify the PhoneAccountHandle associated with it.

If the app can place an outgoing call, the telecom subsystem calls the onCreateOutgoingConnection() method where the app should return a new Connection to represent a new outgoing call.

It is important to call Connection.setActive() once the outgoing call is connected. It notifies the telecom subsystem that the call is in progress.

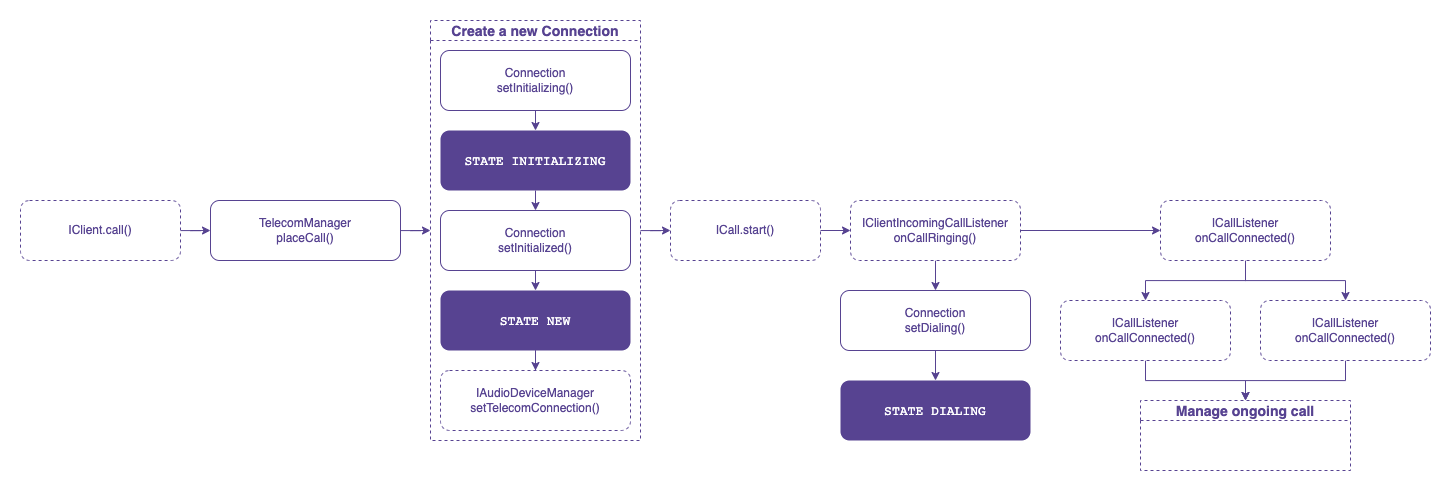

Outbound call connection

Receive an incoming call

When the app receives an incoming call via the Voximplant SDK (IClientIncomingCallListener.onIncomingCall()), it is necessary to check the PhoneAccount registration in the system. To register a new incoming call, use the TelecomManager.addNewinsomingCall() method.

The telecom subsystem binds to the app's ConnectionService and requests a new Connection instance for the incoming call via the ConnectionService.onCreateIncomingConnection() API. Upon receiving this event, the application needs to create a Connection.

For a self-managed connection service, the Connection triggers the Connection.onShowIncomingCallUi() event to let the application know when to display the incoming call UI. Showing a notification with full-screen intent is recommended.

The user may accept and reject the incoming call from the incoming call notification or wearable devices:

  • If the user answers or rejects the call from the notification, it should be handled by the application via PendingIntent.

  • If the user answers or rejects the call from a wearable device, the Connection informs you about this action by triggering the Connection.onAnswer() or Connection.onReject() event.

To answer the call, you need the ICall.answer() API. Establish the call connection via the Voximplant Android SDK and update the Connection state to active once the call is connected (ICallListener.onCallConnected()).

To reject the call, you need the ICall.reject() API. The Voximplant Android SDK triggers the ICallListener.onCallDisconnected() event as soon as the call is ended. The application should set the Connection status to disconnected and destroy the Connection.

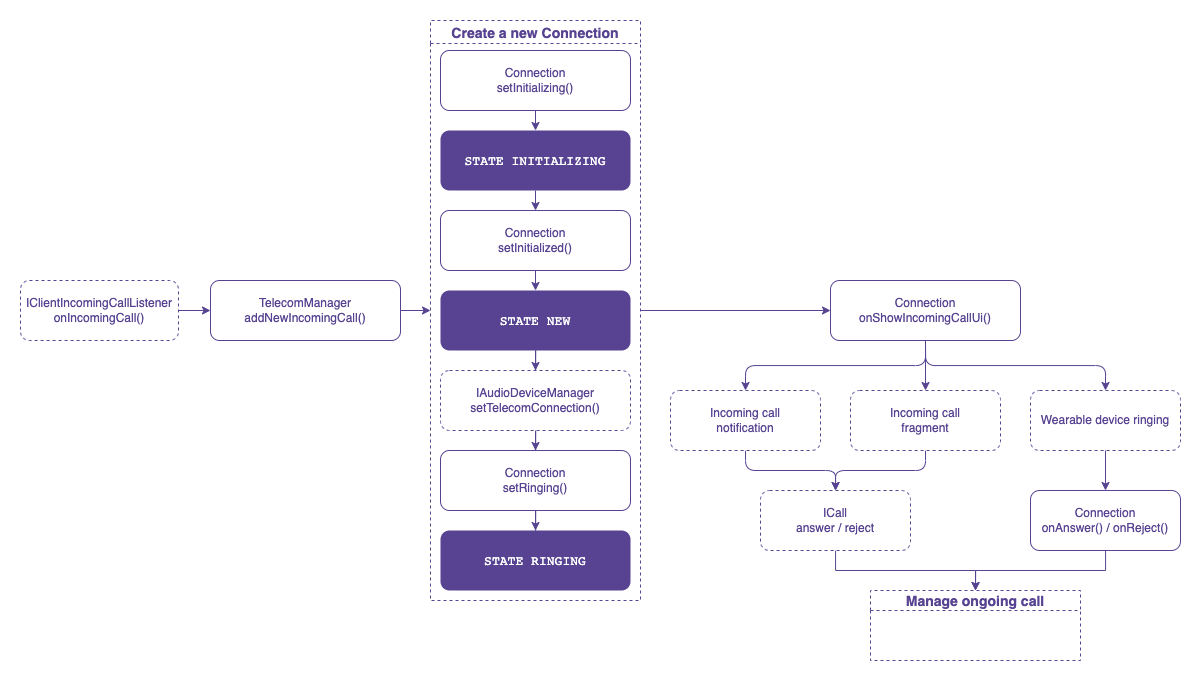

incoming call connection

Manage ongoing call

The Voximplant Android SDK provides the following capabilities for an ongoing call:

  • Put the call on hold

  • Mute

  • Change the audio device

Mute and audio device changing capabilities are fully managed by the Voximplant Android SDK and do not require any Connection API call.

However, to put the call on hold, the application Connection state should be changed via the Connection.setOnHold() API. Please be sure to change the Connection state only if ICall.hold() is completed successfully.

Change the status to put on hold

Change the status to put on hold

Please note

1) On devices running Android API level 28 or higher, when an incoming PSTN call is answered by the user, the VoIP ongoing call is put on hold by TelecomManager and can be resumed after the PSTN call ends. On devices running Android API level 27 or lower, only one app can maintain an ongoing call at any given time. This constraint means that the ongoing call is terminated.

outgoing call connection

End ongoing call

Either a user or a remote party can end an ongoing call.

If the user ends the call, the application should call ICall.hangup() API, so the Voximplant Android SDK triggers the ICallListener.onCallDisconnected() event.

If the remote party ends the call, the Voximplant Android SDK informs the application by triggering the ICallListener.onCallDisconnected() event.

After receiving the ICallListener.onCallDisconnected() event you need to:

  1. Change the Connection status to disconnected via Connection.setDisconnected(DisconnectCause)
  2. Destroy the Connection via Connection.destroy() API to destroy the Connection object.

DisconnectCause describes the cause of a disconnected call. It always includes a code describing the generic cause of the disconnect. Optionally, it may include a label and/or description to be displayed to the user. The ConnectionService provides localized versions of the label and description. It may also contain a disconnect reason used for the logs, and not intended for the user.

See DisconnectCause on the Android Developers site for more information.

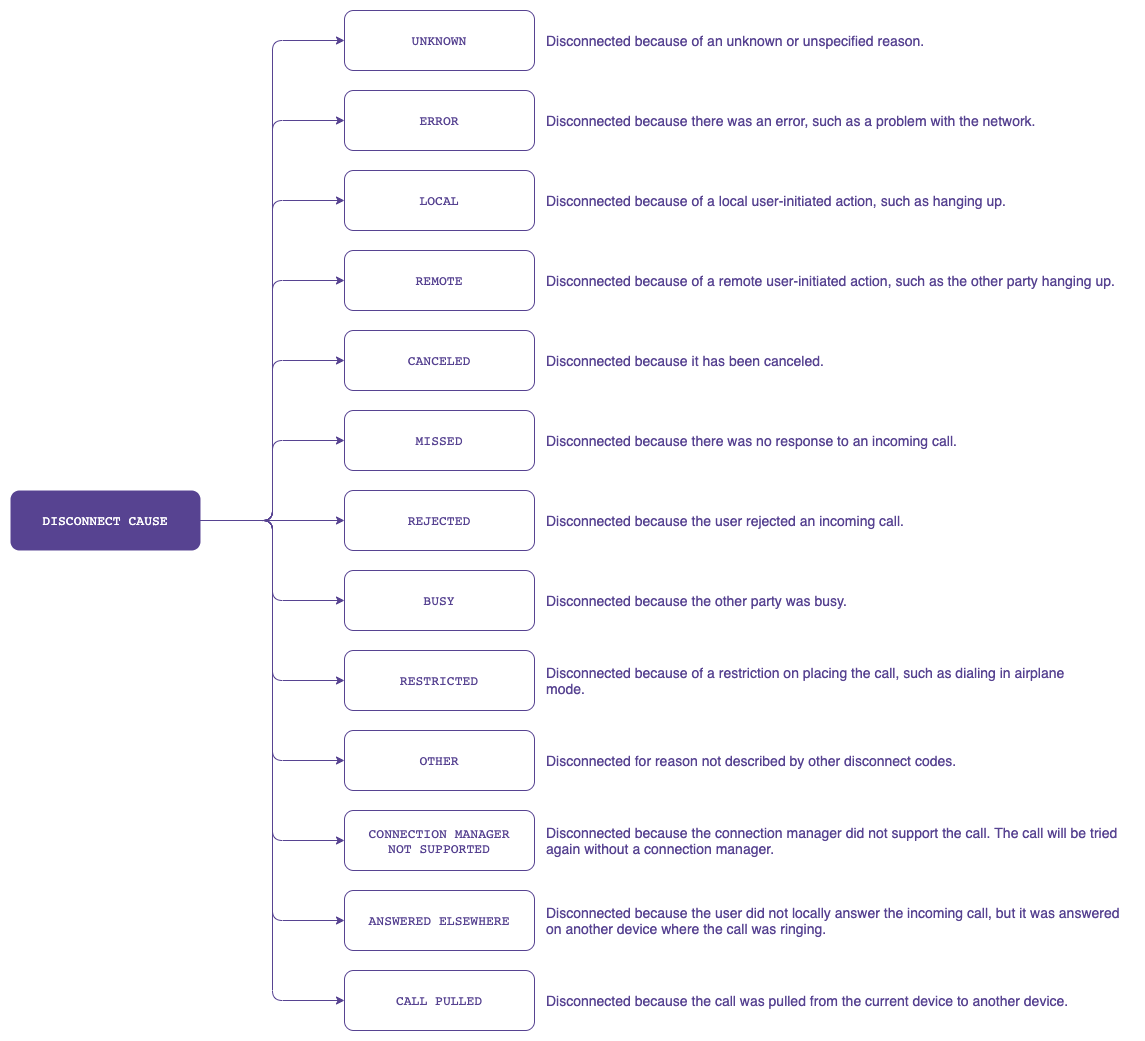

DisconnectCause scheme
